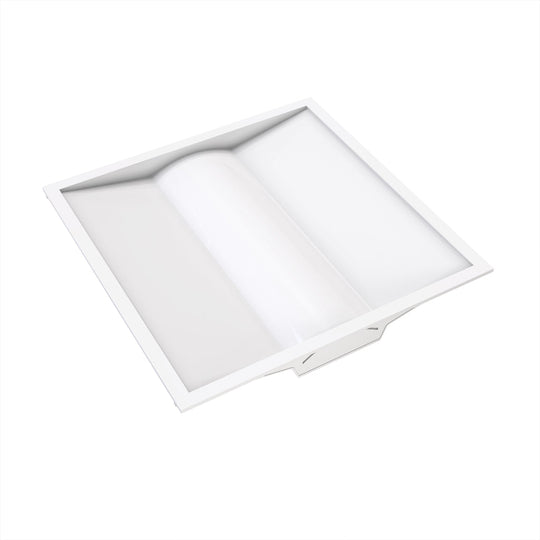

2x2 ft LED Troffer - Wattage & CCT Selectable (dip switch) - Watt: 20W-30W-40W - CCT: 4000K-5000K-6500K - 0-10V Dimmable

2x2 ft LED Troffer - Wattage & CCT Selectable (dip switch) - Watt: 20W-30W-40W - CCT: 4000K-5000K-6500K - 0-10V Dimmable

MPN: TR014
Quantity must be 1 or more
Regular Price:
Regular price
CAD 245.99

  • 30 Days Return
  • 5 Years Warranty
Sold only by the Case of 1.

2x2 ft LED Troffer - Wattage & CCT Selectable (dip switch) - Watt: 20W-30W-40W - CCT: 4000K-5000K-6500K - 0-10V Dimmable
Regular price
CAD 245.99
Sale price
CAD 245.99

2x2 LED Troffer Center Basket Panel for Drop Ceiling, CCT Watt Tunable LED Flat Troffer, Ideal for Homes Offices Hotels Hospitals

The 2x2 ft LED troffer is a versatile and energy-efficient lighting solution, allowing you to customize both wattage and color temperature. With wattage options ranging from 20W to 40W, and color temperature options of 4000K, 5000K, and 6500K, you can adjust the lighting according to your needs. Plus, this troffer features 0-10V dimming capabilities that allow you to adjust the light levels to create the perfect ambiance for your space. The long-lasting LED technology is energy-efficient and reduces maintenance costs, making it a cost-effective lighting fixture for commercial and residential applications. The uniform light distribution eliminates hot spots and glare, providing comfortable and even illumination. Installation is easy with compatibility with most standard ceiling grids, and the sleek and modern design gives a clean and contemporary look.

Beam Angle

Feature Of 2X2 Troffer.

  • Dimensions: L 23.7"x W 23.7" x H1.95"
  • Wattage adjustable option by dip switch
  • CCT adjustable option by dip switch
  • Transparent optics, controlled up light and down light distributions
  • CRI: >80 CRI
  • LED Lifetime: >50,000 Life Hours
  • Dimming: 0-10V
  • Materials: Aluminum
  • Mounting: Recessed
  • UL, DLC Listed
  • 5 years limited warranty

Easy Installation

The installation comes easy with the fixture being installed into the ceiling frame without any suspension. Follow manufacturer's instructions for more details.

CRI >80

With a more than standard Color Rendering Index, the troffer can help viewing of objects in their true colors with an 80% efficiency in comparison to a natural light source.

110 Degree Beam Angle

A beam angle of 110 degree is what you get, when you choose troffer lighting fixture.

Premium LED Chips

We ensure highest quality of our products by having premium LED chips from Epistar. The chip is so embedded inside our LED troffer lighting fixture in such a way that highest operational efficiency is ensured.

Rugged Construction

The troffer is housed in rugged die-cast aluminium metal to ensure durability against any external stress or strain

Thermal Heat Dissipation

LED troffer light has an excellent thermal management ability and hence can dissipate heat effectively, whatever heat that may be produced by the fixture.

UV and Mercury Free

LED troffer does not contain any harmful radiation such as ultraviolet rays in its light beam, nor does it have any toxic chemicals such as mercury or lead to cause any human or environmental hazard.

Low Cost Maintenance

Because of the technology that an LED troffer light utilizes to provide lighting, the product requires no or low maintenance for as long as it lasts, the total lifespan being 50,000 hours.

No Dark Spot

The ultra wide beam angle the troffer has, it eliminates all the dark spots visible in any area.

Green, Eco-Friendly & Mercury-Free

Taking care of the environment is a responsibility that everyone should feel accountable for. The good thing is that lights and luminaries available at LEDMyPlace comply with environmental safety and can be categorized as Green Lights. These lights are completely free from toxic and hazardous chemicals like Mercury and Lead.

Rebate Eligible

Having the Energy Star approval, this product comes within the scope of rebate-eligibility norms.

0-10 Dimmable

The LED troffer light comes with a 0-10V dimmable option and is compatible with most standard dimmers in the market. When the dimmer brings down the light level to a minimum, it's at 0 volts, while the peak light level is achieved at 10 volts.


Beam Angle: >110° Beam Angle
Certifications: UL, DLC Listed
Color Temperature (Kelvin): 4000/5000/6500 Kelvin
Dimmable: Yes
Housing: Steel
Light Distribution: 125 Lm/W
MPN (Part No.): TR014
Replaces: 110 Watt Replacement
UPC: 719034342092
Warranty: 5 Years
Weight: 3.22 Lbs
Brand: LEDMyplace
Color Rendering Index(CRI): >80 CRI
Dimensions (L x W x H): 23.7LX23.7WX1.95H
DLC Listed: Yes
IP Rating: IP20 Rated
Life Hours: >50,000 Hours
Lumens: 5000 Lumens
Operating Temprature: -13 Degree F To +104 Degree F
SKU: WEN-TRO26640-DN-T65-B
Voltage: 120-277 Volt
Wattage: 20W/30W/40W- Selectable
