High Bay LED Light 150W UFO 5700K / Warehouse Lighting 20,098 Lumens

- Luminous Flux: Approximately 20,000 Lumens
- Color Temperature: 5700K
- Hook mounting (sturdy steel eye bolt included)
- Lumileds SMD 3030 LED modules; Acrylic lens
- Rebate-eligible with your power company
- cUL, DLC** Approved
- IP65* rated
*IP65 rated products are water- and dust-proof- safe for outdoor use.
**Certifications that set guidelines for SSL usage in Canada.
Quote & Spec-sheet available on request.
Description:
- Commercial grade LED UFO High Bay lighting/Warehouse lighting fixtures by LEDMyPlace Canada help brighten the interiors of your commercial unit.
- This fixture can easily be hook-mounted on the metal structure of the unit, reducing installation time to one fifth of what traditional fixtures consume.
- You and the workers are essentially saved from irritating flickering or humming lights with these fixtures that have a lifespan of minimum 50,000 hours.
- A replacement to 400W MH fixture, the LED 150W High Bay fixture helps save worth 250W per fixture. A commercial unit requires a lot of these fixtures, so just calculate your savings here!
Applications:
- Warehouse Lighting
- Workshop Lighting
- Factory Lighting
- Manufacturing Facility Lighting
- Tunnel Lighting
- Gym Lighting
- Retail Store Lighting
Easy Installation:
This LED UFO light fixture can be installed easily using the various mounting option the product comes with, reducing installation time by 80% of what traditional fixtures consume. For step by step guide to installing warehouse light refer to the installation guide. (Included inside the box)

Hook Mount:
The hanging ring that comes with our UFO high bay light can be inserted in the mounting cavity and tightened through a bolt on the hanging ring to firmly fix the lights. Now mount this ring on the ceiling via a hook. Remember for hook mounting you must have a heavier hook than the lamp, recommended weight is 3-4 times heavier than the high bay light fixture.

Thermal Heat Dissipation:
The UFO high bay lighting fixtures have an inbuilt aluminum heatsink which accounts for excellent heat dissipation giving these lights a longer lifespan and better performance.

Premium LED Chips:
For maintaining the best quality of our products we use premium LED chips in our Light Fixture. Built with high precision and accuracy these products render maximum operational efficiency.

IP65 Waterproof Rating:
The high bay lights come with an IP65 rating, certifying the product to be splash and dustproof. These warehouse lighting fixtures are versatile and long-lasting products.


Ultra Wide Angle Lens:
The LED UFO High Bay lights are designed to provide high-intensity lights in large storage spaces like warehouses, departmental stores, etc. that's why these come with an ultra-wide-angle lens.

Rugged Construction:
Designed in a rugged die-cast aluminum these UFO high bay lights are sturdily built and can withstand external pressure while installation, removal, and shipping.

Low-Cost Maintenance
The average lifespan of these 100W LED UFO lights is around 50,000 hours. With no lumen depreciation, this product is known to provide flicker-free lighting till the end of its lifespan. Installing LED UFO will reduce recurring replacement charges; hence, it is a low-cost maintenance light

1-10 Dimmable
The 100W UFO 5700K High Bay comes with a 3-step dimmer and can be dimmed from 10 volts to 1 volt, with 1V being the minimum light level, and 10V being the highest level of dimming allowed by the fixture. At 10 volts, the controlled setting of light is at 100% of its potential output.


CRI >80
CRI or Color Rendering Index of a light source is a measure of clarity and true colors visible under that source compare to the sun having the maximum CRI of 100. The CRI of these LED high bay lights is greater than 80.


Motion Sensor (Optional)
The motion sensor is an external accessory to these UFO warehouse lights and can help you increase security in your facility. The motion sensor can help you in saving a marginal amount on utility bills. A 3 Step Dimmer sensor allows energy saving without compromising comfort. To know more check out our community blog on Motion Sensors.

Rebate Eligible
The UFO high bay is DLC approved and comes within the scope of rebate-eligibility criteria.

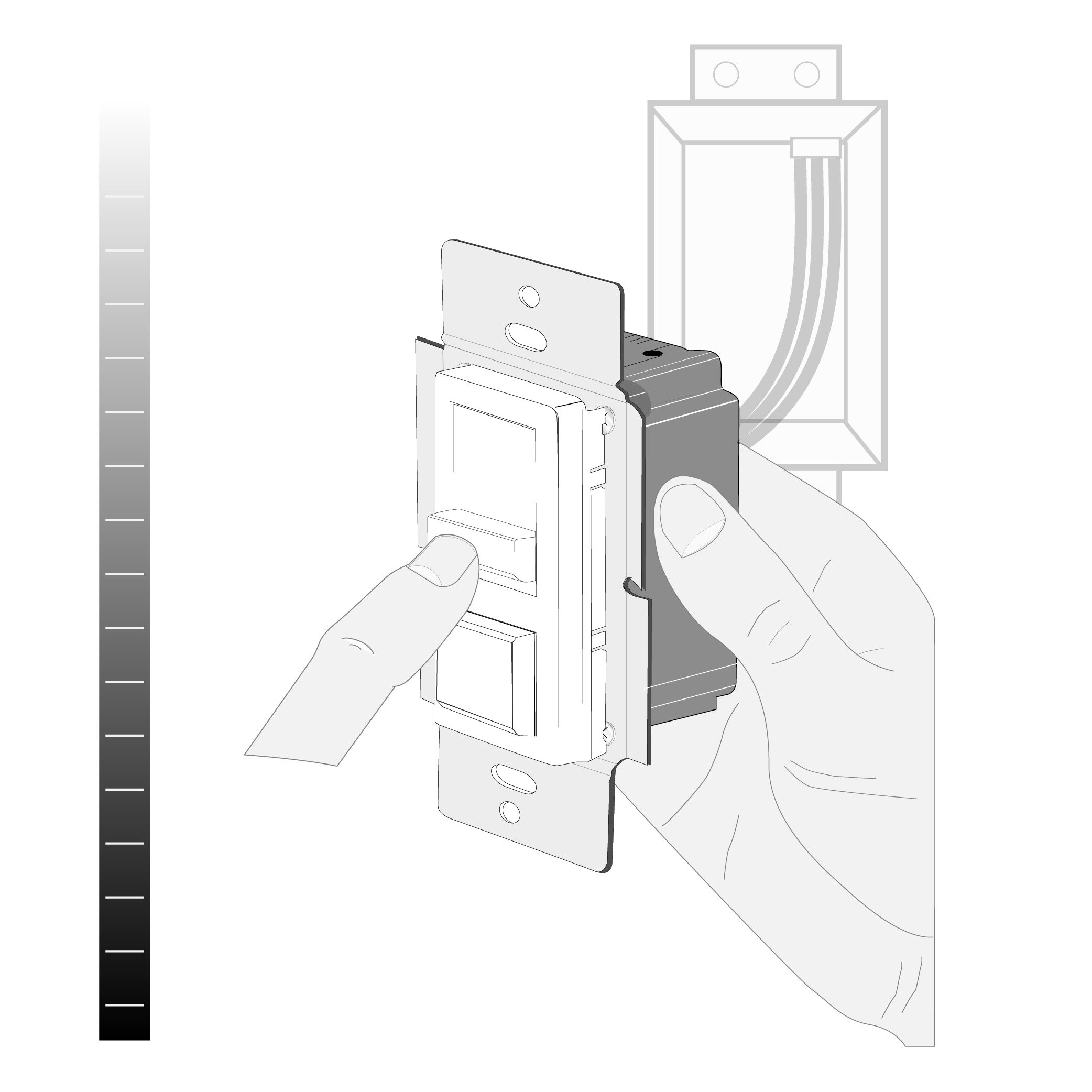

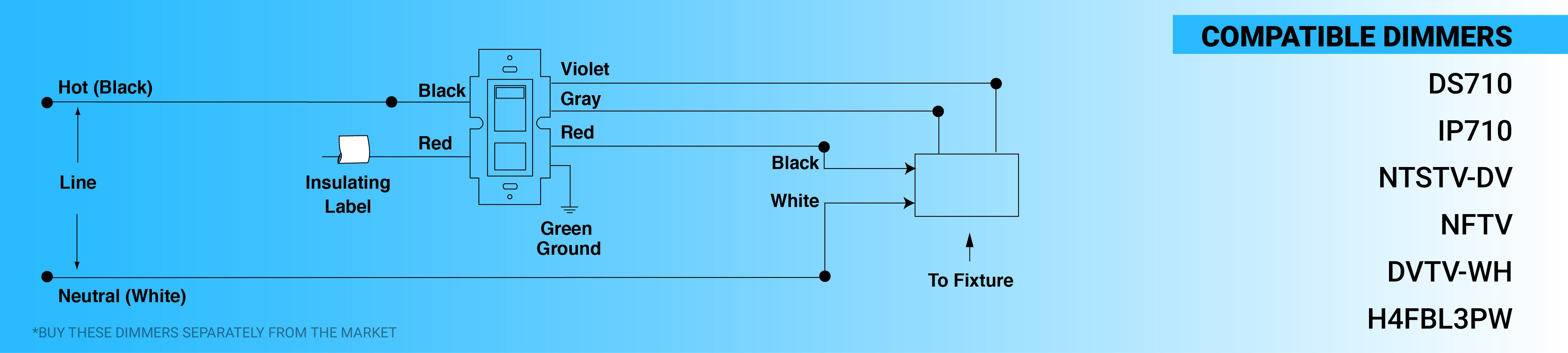

Compatible Dimmers
The LED UFO High Bay product is compatible with the following dimmers. These dimmers work perfectly with our lights.
- DS710
- IP710
- NTSTV-DV
- NFTV
- DVTV-WH
- H4FBL3PW
** For any other Dimmer, please contact our customer support or check with your electrician.


Specifications
Beam Angle: | 120Degree Beam Angle |
Case Qantity: | 1 |
Certifications: | UL, DLC Premium |
Color Temperature (Kelvin): | 5700 Kelvin |
Dimmable: | 1-10V Dimmable |
DLC Model no.: | WEN-HB02-240WD1 4000K |
Fixture: | Yes |
Height: | 7.28 in (including hook) |
IP Rating: | IP65 Rated |
LED Type: | LUXEON 3030 |
Life Hours: | 50,000 Hours |
Metal Halide Equal: | 400 Watt Replacement |

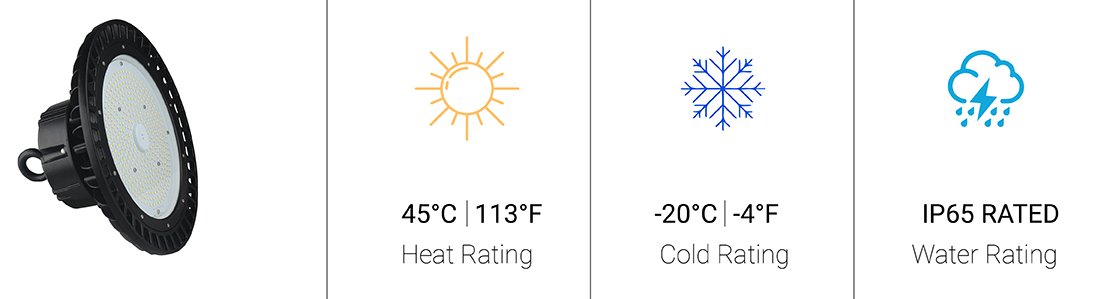

Operating Temprature: | -4Degree F TO +113Degree F |
Safety Rating: | UL |
SKU: | WEN-HB02-150WD1-5700K |
Voltage: | 100-277 Volt |
Wattage: | 150 Watt |
Brand: | LEDMyPlace |
CCT: | 5700 Kelvin |
Color Rendering Index(CRI): | 81.9 CRI |
Diameter: | 12.6 In |
DLC Listed: | DLC Premium |
Driver: | Mean Well HBG-160-48B |
Fixture Color: | Black |
Housing: | Aluminium |
LED Brand: | Lumileds |
Lens Type: | Clear Glass |
Lumens: | 20098 Lumens |
MPN (Part No.): | UF008 |
Power Factor: | >0.9 |
Shape: | UFO |
UPC: | 763684286107 |
Warranty: | 5 Years |
Weight: | 11 Lbs |
