T8 4ft 22W LED Tube 3080 Lumens 5000K Clear Single Ended Power

View Installation Instruction

T8 4ft 22W LED Tube 3080 Lumens 5000K Clear Single Ended Power

View Installation Instruction

MPN: TB034
Quantity must be 1 or more

Regular Price:
Regular price
CAD 15.58
  • 30 Days Return
  • 5 Years Warranty
Sold only by the Case of 1.

1pc
T8 4ft 22W LED Tube 3080 Lumens 5000K Clear Single Ended Power
1pc
Regular price
CAD 15.58
Sale price
CAD 15.58

4FT T8 LED Bulb No Ballast, 22W, 3080 Lumens, 5000K, Single-End Powered Clear Tubes

LEDMyplace brings 4 feet LED clear tube with 22W. These LED Tubes are available in 5000K color temperature and having a CRI of >80 which can deliver 3080 lumens. Our single-ended power led tubes are an excellent substitute for a 4ft fluorescent tube. Tube LED with 22W can safely and easily replace a fluorescent tube of 80W and bring an energy-savings of 58W. Thus, you can have a lower utility bill. Our 22W can work without a ballast, hence the existing ballast must be bypassed. It will directly be wired to the line source for the existing tube fixture to work. These Single Ended LED tubes are housed in rugged die-cast aluminum to heat dissipation. These LED Tubes having a beam angle of 180 degrees emit enough bright light For the standard ceiling height. Our tubes have a long lifespan and a shatterproof coating. LED tubes from LEDMyPlace are ETL & DLC listed. These listings make you eligible for a rebate along with 5 years of warranty.

80
Watt Replacement
3080
Lumens
50,000
Hours
180
Degree Beam Angle
100-277
Volt

Features of T8 4 foot LED Light Fixture 22W 3080 Lumens 5000K Clear Single Ended Power

  • Available Wattage: 22 Watt
  • Color Temperature: 5000K
  • Luminous Efficacy: 130-140 Lm/W
  • Beam Angle: 180 degree
  • Wattage Equivalent: 80W
  • Lifespan - 50,000 hours
  • Ballast Bypass [Works without a ballast]
  • Voltage: 100V - 277V
  • ETL, DLC approved
  • 5 years of Manufacturer's Warranty

Ballast Bypass

These LED tube light fixtures work without ballast (or bypass ballast). Understand the step-by-step procedure of removing or bypassing a ballast by reading our guide.


Flicker-Free

LED tube lights provide flicker-free illumination till the end of their lifespan. With instant functionality, these lights lose very little energy during start-up ensuring durability.


IP22 Rated

The LED tubes that are either clear have an IP22 rating. This rating signifies that our LED tubes are protected against dust-tight (objects in the dust that are of a size more than 1mm) and protected against water-ingress from all directions. For such reasons, LED tubes are safe for use in areas where there are moisture. E.g. Bathrooms, kitchens, etc.

Voltage Input

The LED tubes accept an input voltage of 100V-277V. You can go for a waterproof transformer in case you don’t have this voltage and wish to convert this voltage range to some other

Low Maintenance Cost

The LED tubes will require low or no maintenance if you are going for a ballast bypass option of LED tube installation. Though not very frequent.

>50,000 Life Hours

The lifespan of LED tubes is no less than 50,000 hours or 5 years if the tubes are operated upon for 24 hours a day.

CRI >80

With a Color Rendering Index(CRI) > 80, these LED Tube Light Fixtures render the natural or real color of objects to an accuracy of 80% compared to the ideal source i.e. Sun(CRI=100).

180 Degree Beam Angle

These lights are designed to give a Wide Beam Angle of about 180 degrees giving broader illumination.

Energy Efficient

LED Light Fixtures can save you up to 75% on utility bills compared to HID’s. LED light fixtures to provide you with a brilliant combo of high lumens and low-energy consumption making them ideal for ceiling, storage areas, mechanic garages, and fabrication floors, etc.

Aluminium Heat Sink

The LED tubes have a big heat sink made of aluminum and that’s a pretty good reason as to why the LED tubes don’t warm up too soon to be inconsistent operation. This is in extreme contrast with the fluorescent tubes that warmed up too soon and required cooling down to operate efficiently.

LED Chip

Embedded inside the LED tube is a high-quality standalone chip -- SMD LED -- made from many chips to ensure high performance and reliability.

Rebate Eligible

The LED tubes were one of the first LED lighting products to have become rebate eligible. All our LED tubes are DLC approved to make you eligible for the rebate.

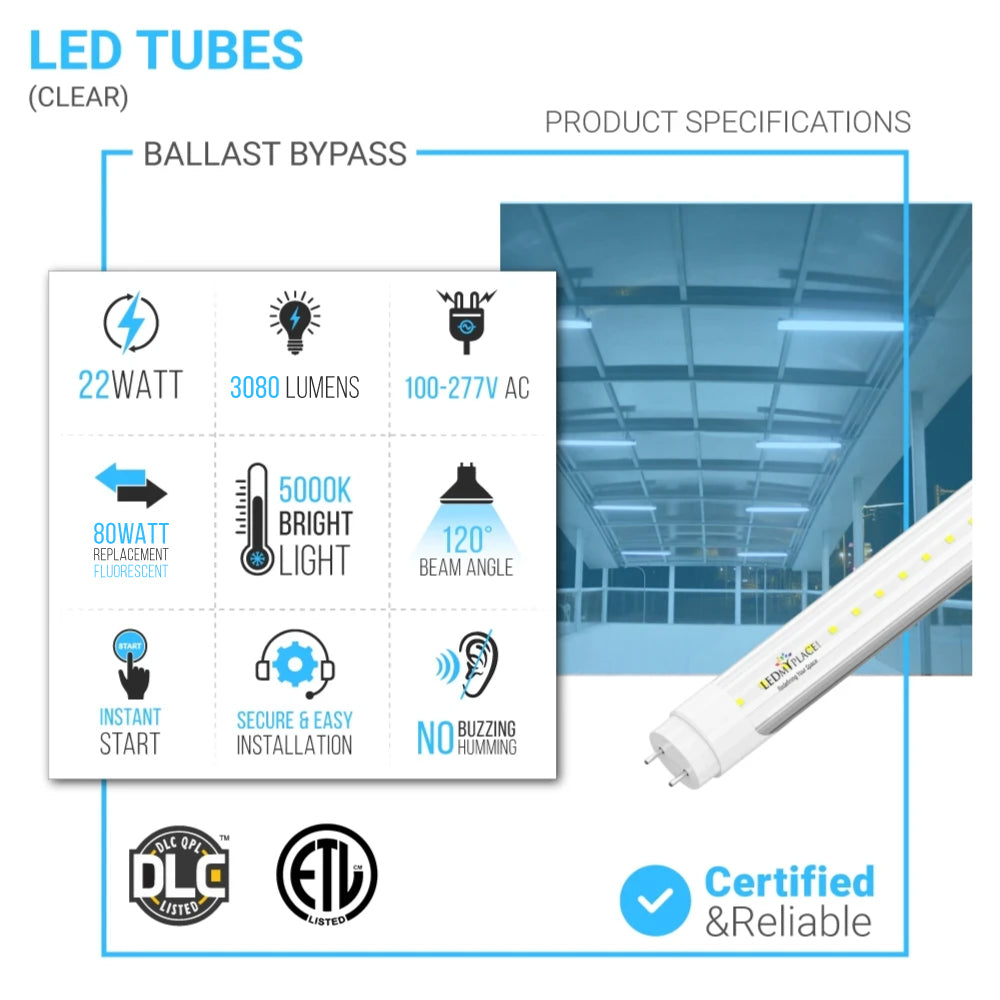

Specifications

Base Type: G13
Brand: LEDMyplace
Color Rendering Index(CRI): 80 CRI
Dimensions (L x W x H): 47.75 x 1.15 x 1.32
DLC Listed: Yes
IP Rating: IP22 Rated
Life Hours: 50,000 Hours
Lumens: 3080 Lumens
Operating Temprature: -68 To +122 °F
Replaces: 80 Watt Replacement
Voltage: 100-277 Volt
Wattage: 22 Watt
Beam Angle: 180 Degree Beam Angle
Certifications: ETL, DLC Listed
Color Temperature (Kelvin): 5000 Kelvin
Dimmable: No
Housing: Aluminum + pc
LED Type: 2835
Light Distribution: 130-140 Lm/W
MPN (Part No.): TB034
Power Factor: 0.95
SKU: WEN-T8-4FT-22WC(5000K)
Warranty: 5 Years
Weight: 0.66 Lbs

Product Review

Questions & Answers

Ask a Question
  • Can any of these single ended LED replacements be wired to a dimmer?

    They can be, but make sure the dimmer is LED compatible.

  • Do these lights come with non-shunted tombstones, or do you need to buy these separately?

    No, but they can be bought here ; https://ledmyplace.ca/products/non-shunted-tombstone-socket?_pos=1&_sid=de5bd0146&_ss=r

  • I am looking for bulbs to replace the ones i use at my walk in freezer please check if these works with the ones i have I can send the picture once you reply

    You can go for our cooler tube CT001.
