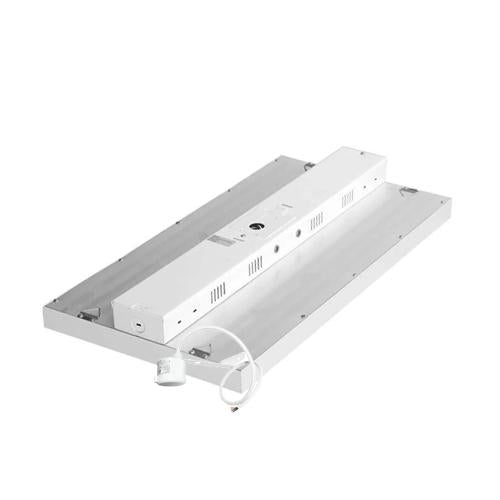

4ft LED Linear High Bay Light, 225W, 800 Watt Replacement, 30150lm, Dimmable, UL, DLC Listed

4ft LED Linear High Bay Light, 225W, 800 Watt Replacement, 30150lm, Dimmable, UL, DLC Listed

MPN: LH005
Quantity must be 1 or more

4000K (Cool White)
5000K (Day Light)
Regular Price:
Regular price
CAD 284.68

  • Free Shipping
  • 30 Days Return
  • 5 Years Warranty
Sold only by the Case of 1.

1-Pack / 4000K (Cool White)
4ft LED Linear High Bay Light, 225W, 800 Watt Replacement, 30150lm, Dimmable, UL, DLC Listed
1-Pack / 4000K (Cool White)
Regular price
CAD 284.68
Sale price
CAD 284.68

4FT LED Linear High Bay Shop Light, 225W, 4000K/5000K, 30150 Lumens, Designed For Warehouses - Dimmable

This 225W Linear High Bay Light is one of our best-selling product for warehouse area and high ceiling indoor lighting. Ideal lighting solution for an indoor ceiling with a height ranging between 15ft to 25ft. With a lumen output of up to 30,150 lumens, this dimmable high bay light can provide you superior luminaire than 800W non-LED light while saving you 575W of energy on each fixture. Its premium-grade lens is designed to achieve a beam angle of 115 degrees. Can be easily hooked/mounted on any ceiling or surface.

800
Watt Replacement
30,150
Lumens
>50,000
Hours
115
Degree Beam Angle
120-277
Volt

Features Of 225W LED Linear High Bay Light

  • Available Wattage:225W
  • Color Temperature Available: 4000K, 5000K
  • Wattage Equivalent: 800W
  • Lumens: 30,150
  • Beam Angle: 115 degree
  • Lifespan: 50,000 hours
  • Voltage: 120V - 277V
  • IP20 Rated
  • UL, DLC approved
  • 5 years of Manufacturer's Warranty

Easy Installation

Linear high bay light fixtures are ceiling lights best suited for large storage spaces like warehouses, and departmental stores. These Industrial lighting fixtures are easy to install through various mounting options like hook mount or ceiling mount. For a complete step-by-step guide refer to the user guide (inside the package).

Hook Mount

These Linear led high bay lights come with a hook mount and can be installed by suspending the fixture through the ceiling using two chains one at each terminal of the fixture.

Thermal Heat Dissipation

These Linear Warehouse lighting fixtures are carefully designed for excellent heat dissipation. The lights come with an aluminum heat sink giving the lights a higher tolerance towards heat.

Optional Accessories

These Linear Warehouse lighting fixtures are carefully designed for excellent heat dissipation. The lights come with an aluminum heat sink giving the lights a higher tolerance towards heat.

Premium LED Chips

These Linear LED High Bay lights are compatible with many handy modern accessories, such as motion sensors, PIR sensors, and Emergency/20W sensors. These accessories can significantly improve the energy efficiency and safety capabilities of the fixture.

Ultra Wide Angle Lens

The high bay lights come with an IP65 rating, certifying the product to be splash and dustproof. These linear warehouse lighting fixtures are versatile and long-lasting products.

Compatible Dimmers

This product is compatible with the following dimmers. These dimmers work perfectly with our lights.

DS710
IP710
NTSTV-DV
NFTV
DVTV-WH
H4FBL3PW

**For any other Dimmer please contact our customer support or check with your electrician.

Dimmable

The 225W Linear High Bay comes with a 1-10 dimmer and can be dimmed from 10 volts to 1 volt, with 1V being the minimum light level, and 10V being the highest level of dimming allowed by the fixture. At 10 volts, the controlled setting of light is at 100% of its potential output.

Specifications

Beam Angle: 115 Degree Beam Angle
Certifications: UL, DLC Certificate
Dimensions (L x W x H): 12.6*47.24*3
Fixture Color: Powder Coating
IP Rating: IP20 Rated
Life Hours: >50,000 Hours
MPN (Part No.): LH005
Power Factor: >0.9
SKU: WEN-HB225DN
Warranty: 5 Years
Weight: 6
Brand: LEDMyplace
Color Temperature (Kelvin): 4000, 5000 Kelvin
Dimmable: 1-10V Dimmable
Housing: Steel & Aluminum
LED Type: SMD LEDs
Lumens: 30,150 Lumens
Operating Temprature: -4Degree F TO +113Degree F
Replaces: 800 Watt Replacement
Voltage: 120-277 Volt
Wattage: 225 Watt
