110W LED Linear High Bay Light ; 5700K ; Clear Cover

This 110W UFO High Bay Light is our best-selling product for warehouse area and high ceiling indoor lighting. Ideal lighting solution for an indoor ceiling with a height ranging between 15ft to 25ft. With a lumen output of up to 15,700 lumens, this dimmable high bay light can provide you superior luminaire than 400W non-LED light while saving you 290W of energy on each fixture. Its premium-grade lens is designed to achieve a beam angle of 110 degrees. Can be easily hooked/mounted on any ceiling or surface.

Features Of 110W LED Linear High Bay Light
- Available Wattage:110W
- Color Temperature Available: 5700K
- Wattage Equivalent: 400W
- Lumens: 15,700
- Beam Angle: 110 degree
- Lifespan: 50,000 hours
- Voltage: 120V - 277V
- Color: Black
- IP65 Rated
- cUL, DLC approved
- 5 years of Manufacturer's Warranty
Easy Installation
Linear high bay light fixtures are ceiling lights best suited for large storage spaces like warehouses, and departmental stores. These Industrial lighting fixtures are easy to install through various mounting options like hook mount or ceiling mount. For a complete step-by-step guide refer to the user guide(inside the package).

Hook Mount

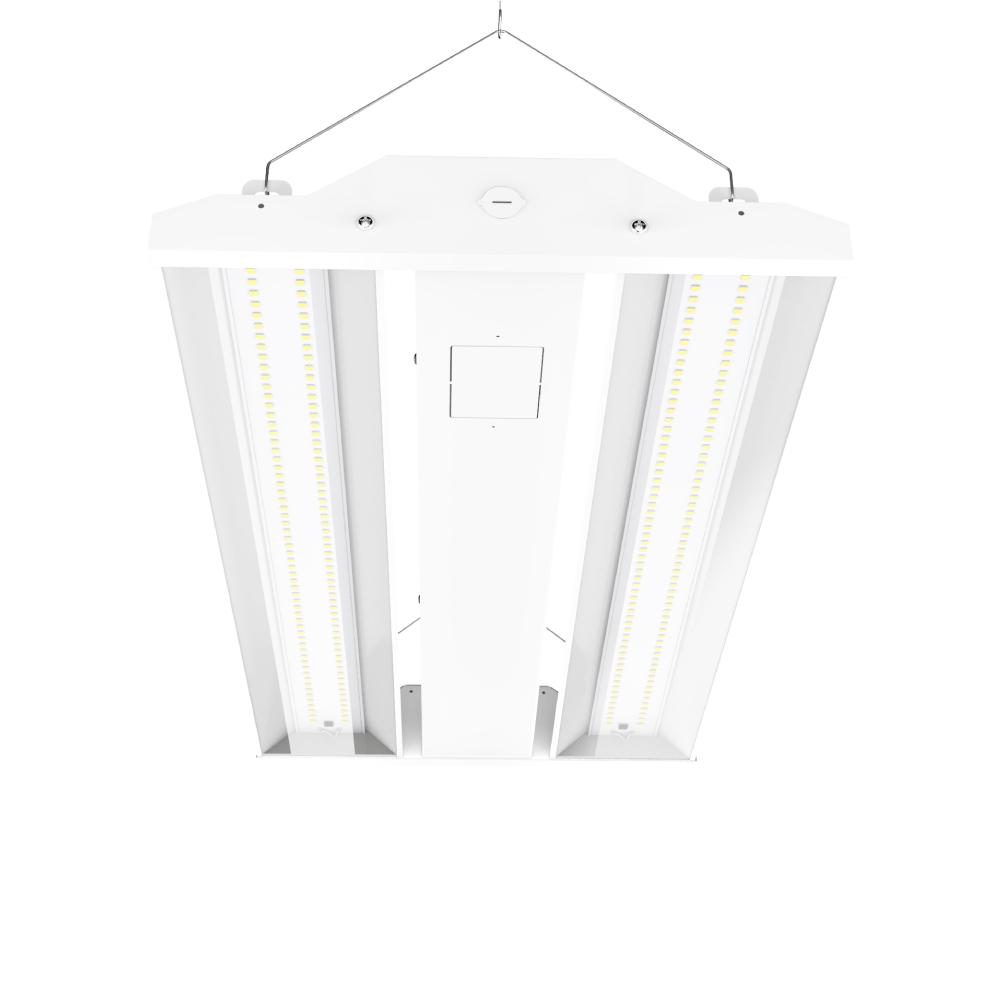

These Linear led high bay lights come with a hook mount and can be installed by suspending the fixture through the ceiling using two chains one at each terminal of the fixture.

Thermal Heat Dissipation

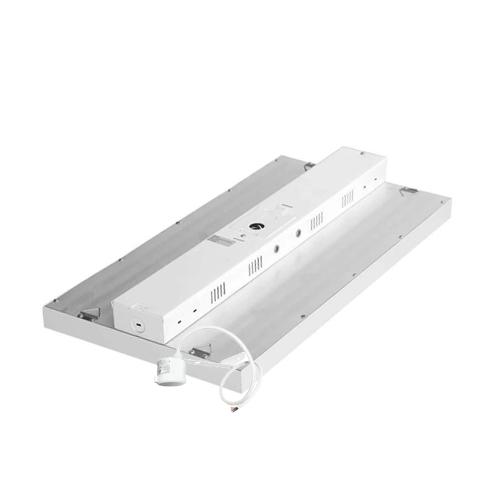

These Linear Warehouse lighting fixtures are carefully designed for excellent heat dissipation. The lights come with an aluminum heat sink giving the lights a higher tolerance towards heat.

Optional Accessories
These Linear Warehouse lighting fixtures are carefully designed for excellent heat dissipation. The lights come with an aluminum heat sink giving the lights a higher tolerance towards heat.

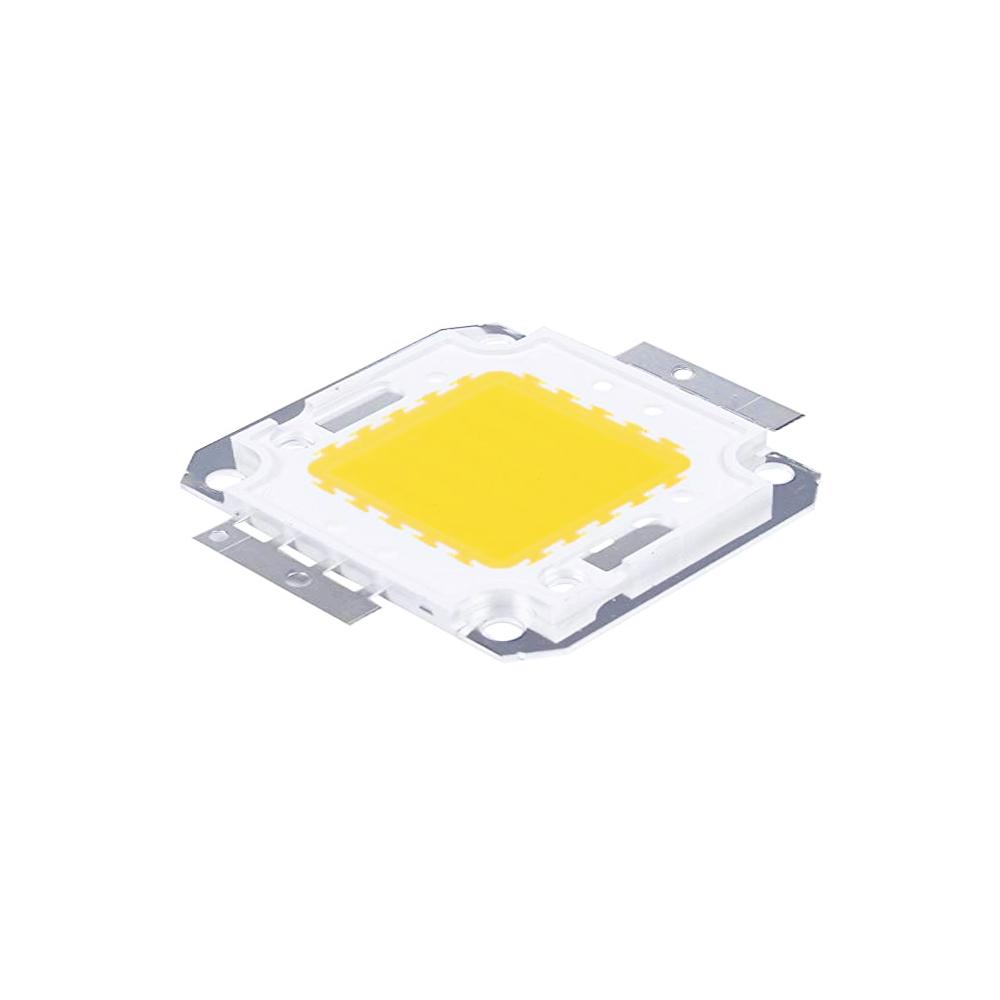

Premium LED Chips
These Linear LED High Bay lights are compatible with many handy modern accessories, such as motion sensors, PIR sensors, and Emergency/20W sensors. These accessories can significantly improve the energy efficiency and safety capabilities of the fixture.

Damp Rated
The high bay lights come with an IP65 rating, certifying the product to be splash and dustproof. These linear warehouse lighting fixtures are versatile and long-lasting products.

Ultra Wide Angle Lens
The high bay lights come with an IP65 rating, certifying the product to be splash and dustproof. These linear warehouse lighting fixtures are versatile and long-lasting products.

CRI>80
The CRI or Color Rendering Index of a light source is a measure of clarity and true colors visible under that source compared to the sun having the maximum CRI of 100. The CRI of these LED high bay lights is greater than 80.

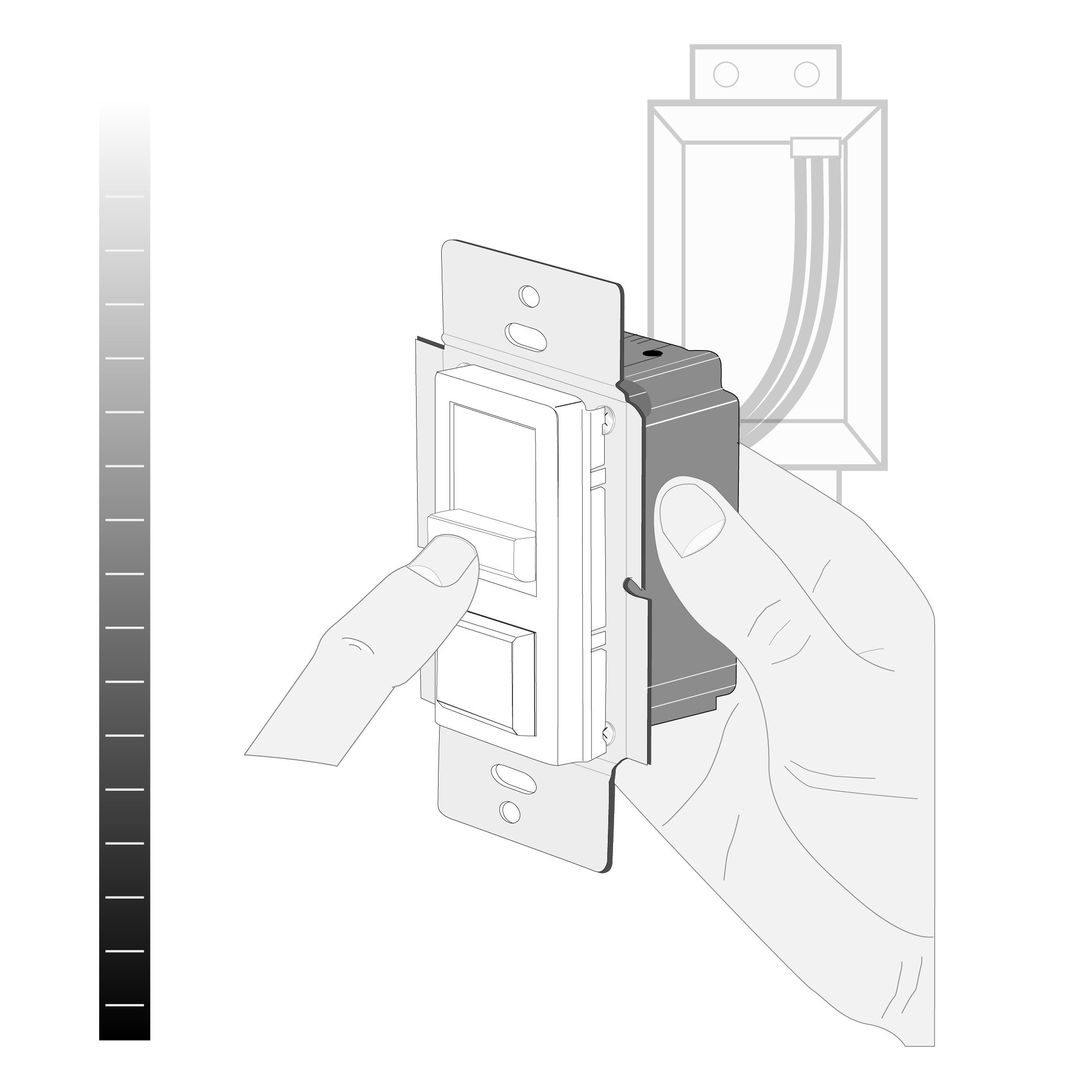

The 110 W Linear 5700K Linear High Bay comes with a 0-10 dimmer and can be dimmed from 10 volts to 0 volt, with 0V being the minimum light level, and 10V being the highest level of dimming allowed by the fixture. At 10 volts, the controlled setting of light is at 100% of its potential output.

Compatible Dimmers
This product is compatible with the following dimmers. These dimmers work perfectly with our lights.
DS710
IP710
NTSTV-DV
NFTV
DVTV-WH
H4FBL3PW
**For any other Dimmer please contact our customer support or check with your electrician.

Specifications
Beam Angle: | 110 Degree Beam Angle |
CCT: | 5700 Kelvin |
Color Rendering Index(CRI): | >80 CRI |
Damp Location: | Damp Location |
Dimmable: | Yes |
DLC Model no.: | WEN-PHB03-110WRACP1C1 |
Grade: | Commercial |
IP Rating: | IP65 Rated |
Life Hours: | 50,000 Hours |
Metal Halide Equal: | 400 Watt Replacement |
Operating Temprature: | -4Degree F TO +113Degree F |
UPC: | 719034341415 |
Warranty: | 5 Years |
Weight: | 8 |
Brand: | LEDMyplace |
Certifications: | cUL, DLC Certified |
Color Temperature (Kelvin): | 5700 Kelvin |
Dimensions (L x W x H): | 25.6x12.2x4.1 |
DLC Listed: | Yes |
Fixture Color: | White |
Housing: | Aluminum |
LED Type: | EPISTAR |
Lumens: | 15700 Lumens |
MPN (Part No.): | LH004 |
SKU: | WEN-PHB03-110WRACP1C1-WH57 |
Voltage: | 120-277 Volt |
Wattage: | 110 Watt |
